SimFrame Beams Module examples
The beam module in SimFrame is a container for arbitrary 6-dimensional particle distributions, providing functions for reading and writing to and from various file formats for simulation codes, including ASTRA, GPT (via easyGDF, SDDS (via soliday.sdds, Ocelot, OpenPMD and an in-house HDF5 distribution.
Functions and properties are provided for obtaining:
slice properties
Twiss parameters
beam centroids
beam sigmas
beam emittances
kernel density estimator
minimum volume ellipse
This notebook will show some of the functionality for loading in distributions, writing them to files, and plotting beam distributions and analysis.
First import the SimFrame Beams module and the plotting functions.
The test file is loaded from the repository.
import sys
import SimulationFramework.Modules.Beams as rbf # noqa E402
from SimulationFramework.Modules.Beams.plot import (
plotScreenImage,
density_plot,
marginal_plot,
slice_plot,
)
testbeamlocation = '../../tests/CLARA/Basefiles/Base_250pC/CLA-S02-SIM-APER-01.hdf5'
beam = rbf.beam(testbeamlocation)
In addition to the 6D phase space distribution [x (m), y (m), z (m) / t (s), px (kgm/s), py (kgm/s), pz (kg*m/s)] , the following properties are derived:
fullbeam– the transpose of the 6D array.[
xp,yp] – horizontal and vertical angular distributions.[
xc,xpc,yc,ypc] – horizontal and vertical positions and angular distributions, corrected for dispersion.[
cpx,cpy,cpz] – the beam momenta in eV/c.deltap– fractional momentum deviation from the mean.[
p,cp] – total beam momentum in kg*m/s and eV/c, respectively.[
Ex,Ey,Ez] – beam energies in eV.[
Bx,By,Bz] – relativistic betas.gamma– relativistic Lorentz factor.Brho– magnetic rigidity.BetaGamma– beam momentum as beta*gamma.[
kinetic_energy,mean_energy] – kinetic energy in J and its mean.E0_eV– rest energy of the particles in eV.Q– total charge of the bunch in C.
Note that only the base-level 6D distribution can be modified (along with attributes such as toffset and total_charge); all of the properties above are derived and cannot be set.
Plotting beam parameters
Any of the array-like properties of the beam object can be plotted using the three functions defined below.

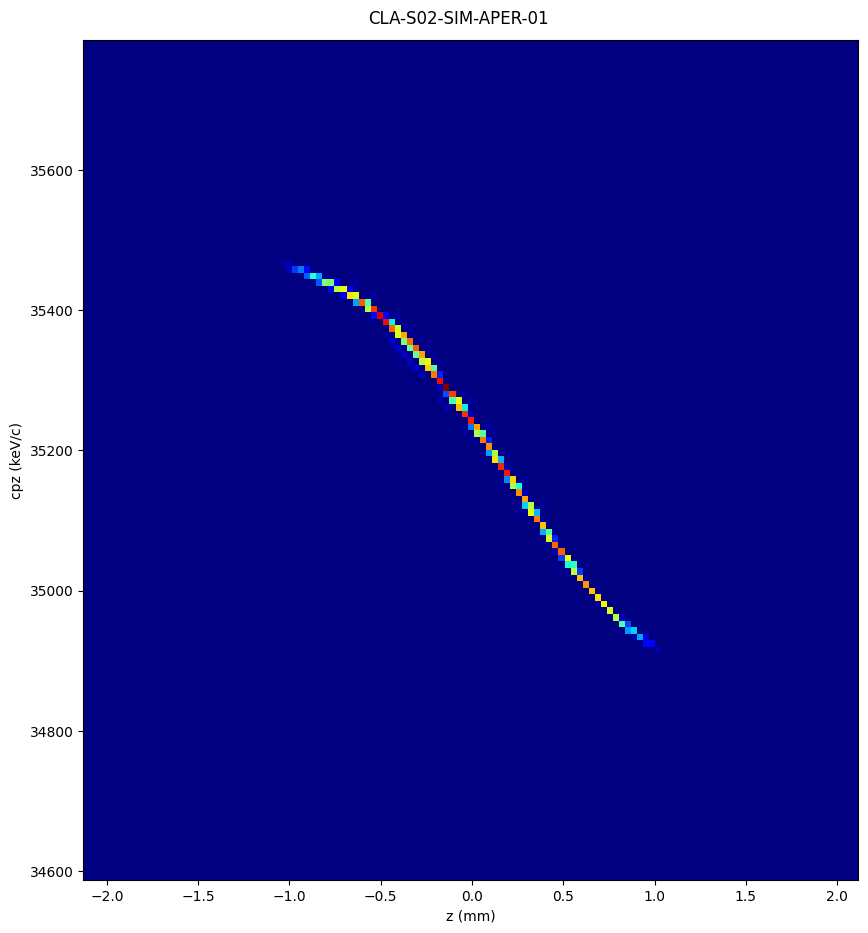

plotScreenImage(beam, keys=["z", "cpz"], subtract_mean=[True, False])
density_plot(beam, key="x", bins=20)

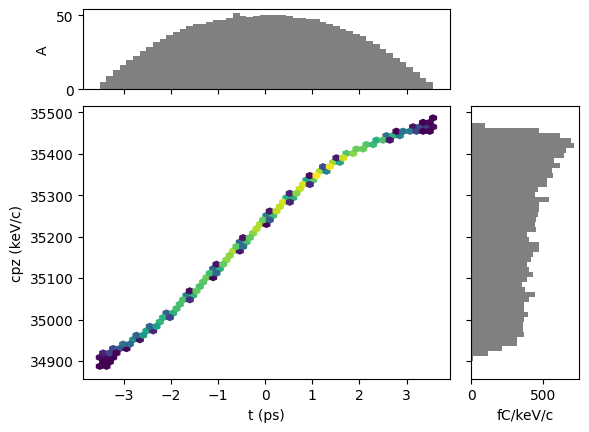

marginal_plot(beam, key1="t", key2="cpz", bins=50, subtract_mean=[True, False])

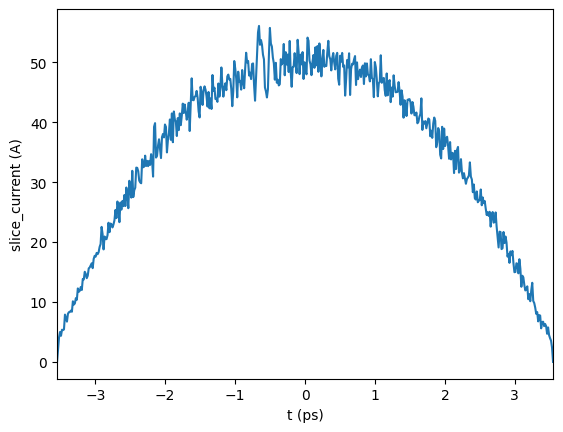

slice_plot(beam, bins=500)
Derived objects from the distribution
Once a distribution is loaded, the beam object will calculate the emittance, Twiss, and so on, with the following properties defined therein.
beam.Particles.model_dump()
{'Q': -249.99904632567237 pC,
'x': array([ 5.51101429e-07, -6.50362433e-05, -2.54837562e-04, ...,
4.33454182e-04, 4.25720265e-04, -5.71904628e-04], units='m'),
'y': array([-1.49411997e-06, 2.54326650e-04, -6.59195007e-05, ...,
-3.35637164e-04, -1.45399671e-04, -1.67661723e-04], units='m'),
'z': array([3.37146439, 3.37146054, 3.3714605 , ..., 3.37226684, 3.37182739,
3.37151151], units='m'),
'cpx': array([ 4.00533305, -227.35835643, -884.67755086, ...,
1967.51902427, 1013.42351584, -1785.75700152], units='eV/c'),
'cpy': array([ -13.10264798, 880.77217307, -231.4252551 , ...,
-2019.46124709, -650.02971922, -606.29400726], units='eV/c'),
'cpz': array([35239721.98261 , 35241031.27186141, 35241046.23069784, ...,
34961040.3273581 , 35103161.1710736 , 35223046.05993564], units='eV/c'),
'emittance': {'ex': 6.085569542900601 nm*rad,
'ey': 6.096951369790895 nm*rad,
'enx': 419.5296118918665 nm*rad,
'eny': 420.31425717185937 nm*rad,
'ecx': 6.085564599083844 nm*rad,
'ecy': 6.096937375117689 nm*rad,
'ecnx': 419.529272031375 nm*rad,
'ecny': 420.3132933613225 nm*rad,
'normalized_horizontal_emittance': 419.5296128503428 nm*rad,
'normalized_vertical_emittance': 420.3142581321283 nm*rad,
'horizontal_emittance': 6.085569542900601 nm*rad,
'vertical_emittance': 6.096951369790895 nm*rad,
'horizontal_emittance_90': 26.77955808473015 nm*rad,
'normalized_horizontal_emittance_90': 1.8459464492811317 µm*rad,
'vertical_emittance_90': 26.76232912109781 nm*rad,
'normalized_vertical_emittance_90': 1.84475883654528 µm*rad,
'horizontal_emittance_corrected': 6.085564599083844 nm*rad,
'vertical_emittance_corrected': 6.096937375117689 nm*rad,
'normalised_horizontal_emittance_corrected': 419.529272031375 nm*rad,
'normalised_vertical_emittance_corrected': 420.3132933613225 nm*rad},
'twiss': {'normalized_horizontal_emittance': 419.5296128503428 nm*rad,
'normalized_vertical_emittance': 420.3142581321283 nm*rad,
'horizontal_emittance': 6.085569542900601 nm*rad,
'vertical_emittance': 6.096951369790895 nm*rad,
'horizontal_emittance_corrected': 6.085564599083844 nm*rad,
'vertical_emittance_corrected': 6.096937375117689 nm*rad,
'beta_x': 32.05020978021645 m/rad,
'alpha_x': -3.3212154062213517 m^-1/rad,
'gamma_x': 0.3753632770899389 rad/m,
'beta_y': 31.976841557655998 m/rad,
'alpha_y': -3.3160807576647953 m^-1/rad,
'gamma_y': 0.375158740106479 rad/m,
'beta_x_corrected': 32.050219635126446 m/rad,
'alpha_x_corrected': -3.3212156754949214 m^-1/rad,
'gamma_x_corrected': 0.37536321747910933 rad/m,
'beta_y_corrected': 31.97687646175686 m/rad,
'alpha_y_corrected': -3.316082358099601 m^-1/rad,
'gamma_y_corrected': 0.375158662543124 rad/m,
'eta_x': 70.85083726242118 µm,
'eta_xp': 10.634193345543734 µrad},
'sigmas': {'sigma_x': 441.6376121686877 µm,
'sigma_y': 441.5441630647349 µm,
'sigma_t': 1.6386590592345411 ps,
'sigma_z': 491.2058865500386 µm,
'sigma_cp': 156.01265890540358 keV/c,
'sigma_cp_eV': 156.01265890540358 keV/c,
'Sx': 441.6376121686877 µm,
'Sy': 441.5441630647349 µm,
'Sz': 491.2058865500386 µm,
'St': 1.6386590592345411 ps,
'momentum_spread': 156.01265890540358 keV/c,
'linear_chirp_t_pz': -5.118464776079278 Gs/m/kg,
'linear_chirp_z': -31.484941869066564 p},
'centroids': {'mean_x': 82.91555735978675 nm,
'mean_y': -558.26953533303 nm,
'mean_t': -18.70884225084076 fs,
'mean_z': 3.3714699999998476 m,
'mean_cpx': -1.6822938497155069 eV/c,
'mean_cpy': -4.6192358672362035 eV/c,
'mean_cpz': 35.22375881604315 MeV/c,
'mean_energy': 2.8838063994312573 µJ*eV/c,
'mean_gamma': 68.93843003511505 ,
'mean_cp': 35.22375889651695 MeV/c,
'Cx': 82.91555735978675 nm,
'Cy': -558.26953533303 nm,
'Cz': 3.3714699999998476 m,
'Ct': -18.70884225084076 fs,
'Cp': 35.22375889651695 MeV/c,
'Cpx': -1.6822938497155069 eV/c,
'Cpy': -4.6192358672362035 eV/c,
'Cpz': 35.22375881604315 MeV/c,
'Cxp': -47.96882077938042 nrad,
'Cyp': -130.8047034777232 nrad,
'Cgamma': 68.93843003511505 ,
'Ccp': 35.22375889651695 MeV/c,
'CEn': 2.8838063994312573 µJ*eV/c}}
beam.Particles.emittance.model_dump()
{'ex': 6.085569542900601 nm*rad,
'ey': 6.096951369790895 nm*rad,
'enx': 419.5296118918665 nm*rad,
'eny': 420.31425717185937 nm*rad,
'ecx': 6.085564599083844 nm*rad,
'ecy': 6.096937375117689 nm*rad,
'ecnx': 419.529272031375 nm*rad,
'ecny': 420.3132933613225 nm*rad,
'normalized_horizontal_emittance': 419.5296128503428 nm*rad,
'normalized_vertical_emittance': 420.3142581321283 nm*rad,
'horizontal_emittance': 6.085569542900601 nm*rad,
'vertical_emittance': 6.096951369790895 nm*rad,
'horizontal_emittance_90': 26.77955808473015 nm*rad,
'normalized_horizontal_emittance_90': 1.8459464492811317 µm*rad,
'vertical_emittance_90': 26.76232912109781 nm*rad,
'normalized_vertical_emittance_90': 1.84475883654528 µm*rad,
'horizontal_emittance_corrected': 6.085564599083844 nm*rad,
'vertical_emittance_corrected': 6.096937375117689 nm*rad,
'normalised_horizontal_emittance_corrected': 419.529272031375 nm*rad,
'normalised_vertical_emittance_corrected': 420.3132933613225 nm*rad}
beam.Particles.twiss.model_dump()
{'normalized_horizontal_emittance': 419.5296128503428 nm*rad,
'normalized_vertical_emittance': 420.3142581321283 nm*rad,
'horizontal_emittance': 6.085569542900601 nm*rad,
'vertical_emittance': 6.096951369790895 nm*rad,
'horizontal_emittance_corrected': 6.085564599083844 nm*rad,
'vertical_emittance_corrected': 6.096937375117689 nm*rad,
'beta_x': 32.05020978021645 m/rad,
'alpha_x': -3.3212154062213517 m^-1/rad,
'gamma_x': 0.3753632770899389 rad/m,
'beta_y': 31.976841557655998 m/rad,
'alpha_y': -3.3160807576647953 m^-1/rad,
'gamma_y': 0.375158740106479 rad/m,
'beta_x_corrected': 32.050219635126446 m/rad,
'alpha_x_corrected': -3.3212156754949214 m^-1/rad,
'gamma_x_corrected': 0.37536321747910933 rad/m,
'beta_y_corrected': 31.97687646175686 m/rad,
'alpha_y_corrected': -3.316082358099601 m^-1/rad,
'gamma_y_corrected': 0.375158662543124 rad/m,
'eta_x': 70.85083726242118 µm,
'eta_xp': 10.634193345543734 µrad}
beam.Particles.sigmas.model_dump()
{'sigma_x': 441.6376121686877 µm,
'sigma_y': 441.5441630647349 µm,
'sigma_t': 1.6386590592345411 ps,
'sigma_z': 491.2058865500386 µm,
'sigma_cp': 156.01265890540358 keV/c,
'sigma_cp_eV': 156.01265890540358 keV/c,
'Sx': 441.6376121686877 µm,
'Sy': 441.5441630647349 µm,
'Sz': 491.2058865500386 µm,
'St': 1.6386590592345411 ps,
'momentum_spread': 156.01265890540358 keV/c,
'linear_chirp_t_pz': -5.118464776079278 Gs/m/kg,
'linear_chirp_z': -31.484941869066564 p}
beam.Particles.centroids.model_dump()
{'mean_x': 82.91555735978675 nm,
'mean_y': -558.26953533303 nm,
'mean_t': -18.70884225084076 fs,
'mean_z': 3.3714699999998476 m,
'mean_cpx': -1.6822938497155069 eV/c,
'mean_cpy': -4.6192358672362035 eV/c,
'mean_cpz': 35.22375881604315 MeV/c,
'mean_energy': 2.8838063994312573 µeV*J/c,
'mean_gamma': 68.93843003511505 ,
'mean_cp': 35.22375889651695 MeV/c,
'Cx': 82.91555735978675 nm,
'Cy': -558.26953533303 nm,
'Cz': 3.3714699999998476 m,
'Ct': -18.70884225084076 fs,
'Cp': 35.22375889651695 MeV/c,
'Cpx': -1.6822938497155069 eV/c,
'Cpy': -4.6192358672362035 eV/c,
'Cpz': 35.22375881604315 MeV/c,
'Cxp': -47.96882077938042 nrad,
'Cyp': -130.8047034777232 nrad,
'Cgamma': 68.93843003511505 ,
'Ccp': 35.22375889651695 MeV/c,
'CEn': 2.8838063994312573 µeV*J/c}
Reading and writing to and from different simulation code formats
The beam object can load in and write to different file formats. The examples below show how to do this, and as a sanity check we can plot the beam distribution to check that it is the same after transforming.
astrabeamlocation = testbeamlocation.replace('hdf5', 'astra')
sddsbeamlocation = testbeamlocation.replace('hdf5', 'sdds')
ocelotbeamlocation = testbeamlocation.replace('hdf5', 'ocelot.npz')
gptbeamlocation = testbeamlocation.replace('hdf5', 'gdf')
beam.write_astra_beam_file(filename=astrabeamlocation)
beam.write_gdf_beam_file(filename=gptbeamlocation)
beam.write_ocelot_beam_file(filename=ocelotbeamlocation)
beam.write_SDDS_beam_file(filename=sddsbeamlocation)
initializing ocelot...
astrabeam = rbf.beam(astrabeamlocation)
sddsbeam = rbf.beam(sddsbeamlocation)
ocelotbeam = rbf.beam(ocelotbeamlocation)
gptbeam = rbf.beam(gptbeamlocation)
[ 5.51101429e-07 -6.50362433e-05 -2.54837562e-04 ... 4.33454182e-04
4.25720265e-04 -5.71904628e-04]
plotScreenImage(sddsbeam, keys=["z", "cpz"], subtract_mean=[True, False])
